SKU: T47A24C-01

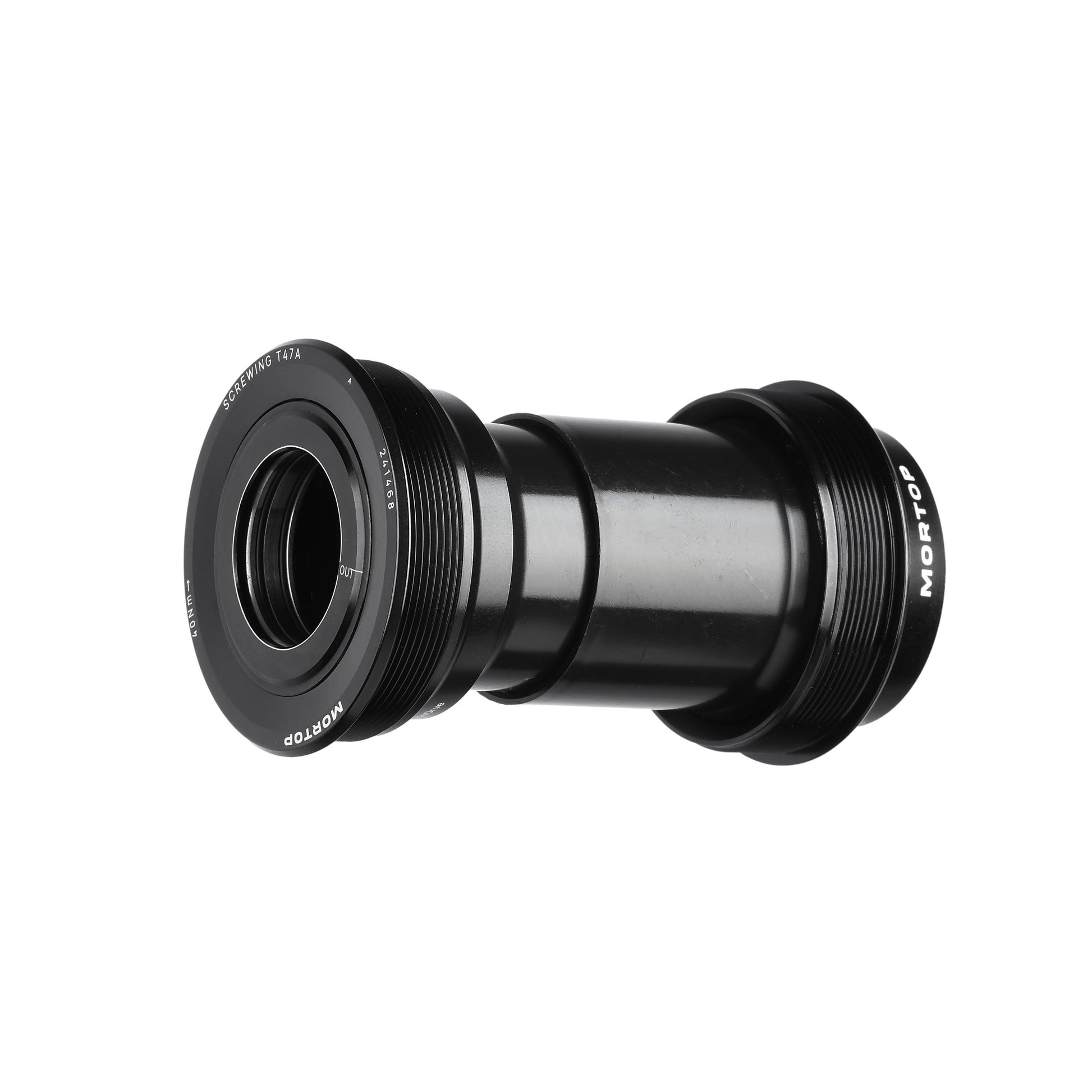

Screwing T47 Asymmetric

$158.00 USD
Select Spindle (mm)
Color
$158.00 USD

Information

This product features an innovative 20T internal locking design, significantly increasing the tool contact area and ensuring extremely even locking force, completely eliminating the nightmare of stripped threads on traditional bottom brackets. Combined with a revolutionary quick-release mechanism, it simplifies the previously cumbersome disassembly and maintenance process, drastically reducing preparation time. Precisely compatible with ISIS international standard crankshafts and BSA24 bottom bracket systems, it's a direct upgrade without modification. This is not just a bottom bracket; it's the ultimate core for upgrading your motorcycle and pushing your limits. Weight reduction directly leads to top performance, allowing you to ride with effortless power!

Compatibility: Sram DUB, 30mm spindles, Sram Gxp, and Shimano Hollowtech II

Material: 7075-T6 Aluminium

Included: 24mm specification accessories,
2ps x cover.
2ps x bearing.
2ps x 1mm, 2ps x 5mm spindle spacer.
3ps x 2.5mm, 2ps x 1mm, 2ps x 0.5mm and 2ps x 1mm cup spacer.

30mm specification accessories,
2ps x cover.
2ps x bearing.
2ps x 1mm spindle spacer.
3ps x 2.5mm, 2ps x 1mm, 2ps x 0.5mm and 2ps x 1mm cup spacer.

29mm specification accessories,
2ps x cover.
2ps x bearing.
10ps x 1mm , 2ps x 0.5mm spindle spacer.
3ps x 2.5mm, 2ps x 1mm, 2ps x 0.5mm and 2ps x 1mm cup spacer.

24/22mm specification accessories,
2ps x cover.
2ps x bearing.
2ps x 1mm, 2ps x 5mm spindle spacer.
3ps x 2.5mm, 2ps x 1mm, 2ps x 0.5mm and 2ps x 1mm cup spacer.
2ps x spring spacer
Specifically designed for installing 22mm / 24mm spindle diameter cranks (SRAM / Truvativ GXP) the frames without the need for any adapters.

Features

Simplification and challenges

The 20T internal locking mechanism is not only designed to increase installation fault tolerance while maintaining an aesthetically pleasing appearance. It also features a centre tube that prevents foreign object intrusion, making it weather-resistant and capable of overcoming a wide range of challenges.

Tapered Profile

Fun5 bearing technology not only enables automatic coaxialisation for improved power output. Its easy maintenance feature ensures that it can operate smoothly for extended periods, while angular contact further enhances its reliability and longevity.

Ceramic Rolling

This technology incorporates ceramic beads with low resistance that are immune to rust, deformation, and bonded with nano grease. These features provide the benefits of reduced resistance, faster running speeds, and exceptional water resistance, surpassing the performance of conventional steel balls.

Specifications

Item Bearing Shell DIA Shell Width Crankset Weight
T47A24C Ceramic Threaded 47mm 77.5-79mm Shimano or 24mm axle crankset 110.5g
T47A24S Cartridge Threaded 47mm 77.5-79mm Shimano or 24mm axle crankset 110.5g
T47A29C Ceramic Threaded 47mm 77.5-79mm Sram DUB crankset 109g
T47A29S Cartridge Threaded 47mm 77.5-79mm Sram DUB crankset 112.7g
T47A30C Ceramic Threaded 47mm 77.5-79mm 30mm axle crankset 106.3g
T47A30S Cartridge Threaded 47mm 77.5-79mm 30mm axle crankset 110g
T47A22C Ceramic Threaded 47mm 77.5-79mm Sram Gxp crankset 109.3g
T47A22S Cartridge Threaded 47mm 77.5-79mm Sram DUB crankset 112g

Spare Parts & Tools
